Drain Surveys Before and After Driveways, Patios and Extensions

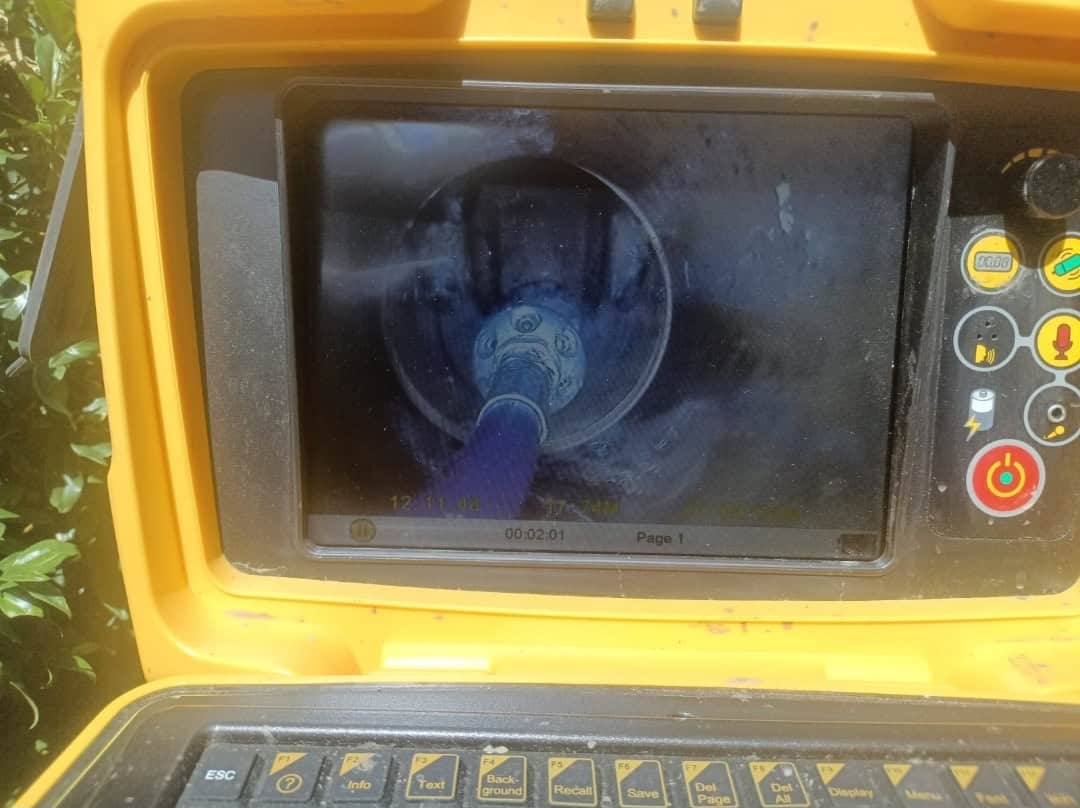

Having building or landscaping work carried out? Check your drains before you start. Drainage pipes often run beneath driveways, patios, gardens and areas where extensions or other structures are being built. Once the project is complete, those pipes may become difficult and expensive to access. A professional CCTV drain survey before work begins can record their condition and help establish their route.
Protect What Is Beneath Your Project
It is natural to focus on the visible result when planning a new driveway, patio, extension, conservatory or garden room. However, important services may be hidden below the working area. Drainage layouts are not always obvious, particularly at older properties where pipes may have been altered, extended or repaired over many years.
A pre-work CCTV drain survey provides a useful baseline. It may identify cracks, fractures, blockages, root ingress, displaced joints or other structural concerns before heavy machinery, excavation or foundation work begins. It can also help your contractor understand where accessible drainage appears to run. If a problem is found, you have the opportunity to consider cleaning or repair before it is covered by a new surface or structure.
Drain Surveys Before a New Driveway
Installing a driveway can involve digging out existing ground, compacting sub-base material, using heavy machinery and creating new surface-water drainage. If a foul or surface-water pipe crosses the area, that activity may place additional pressure on it. An existing weak point could also become harder to reach once the new driveway has been laid.

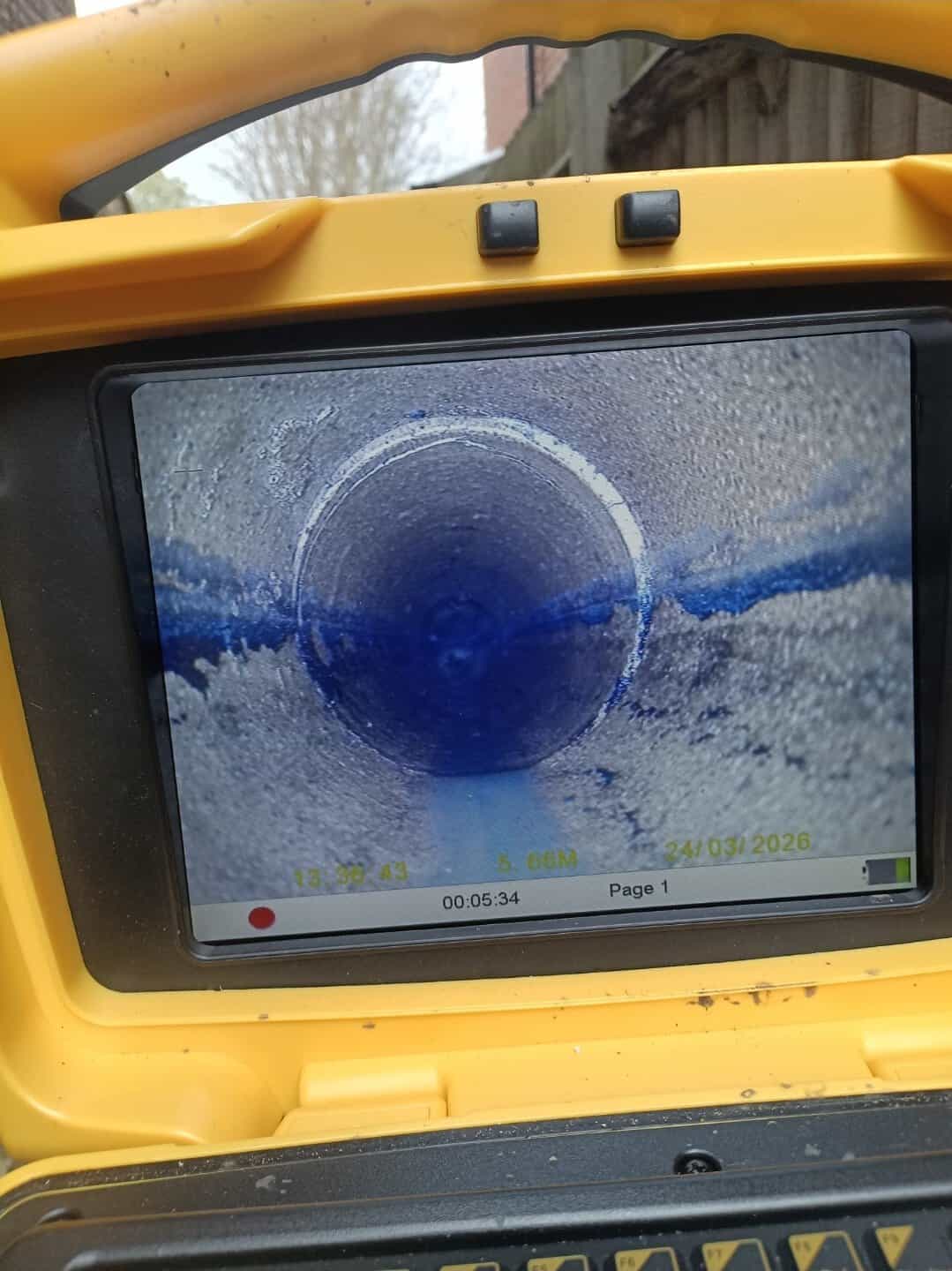

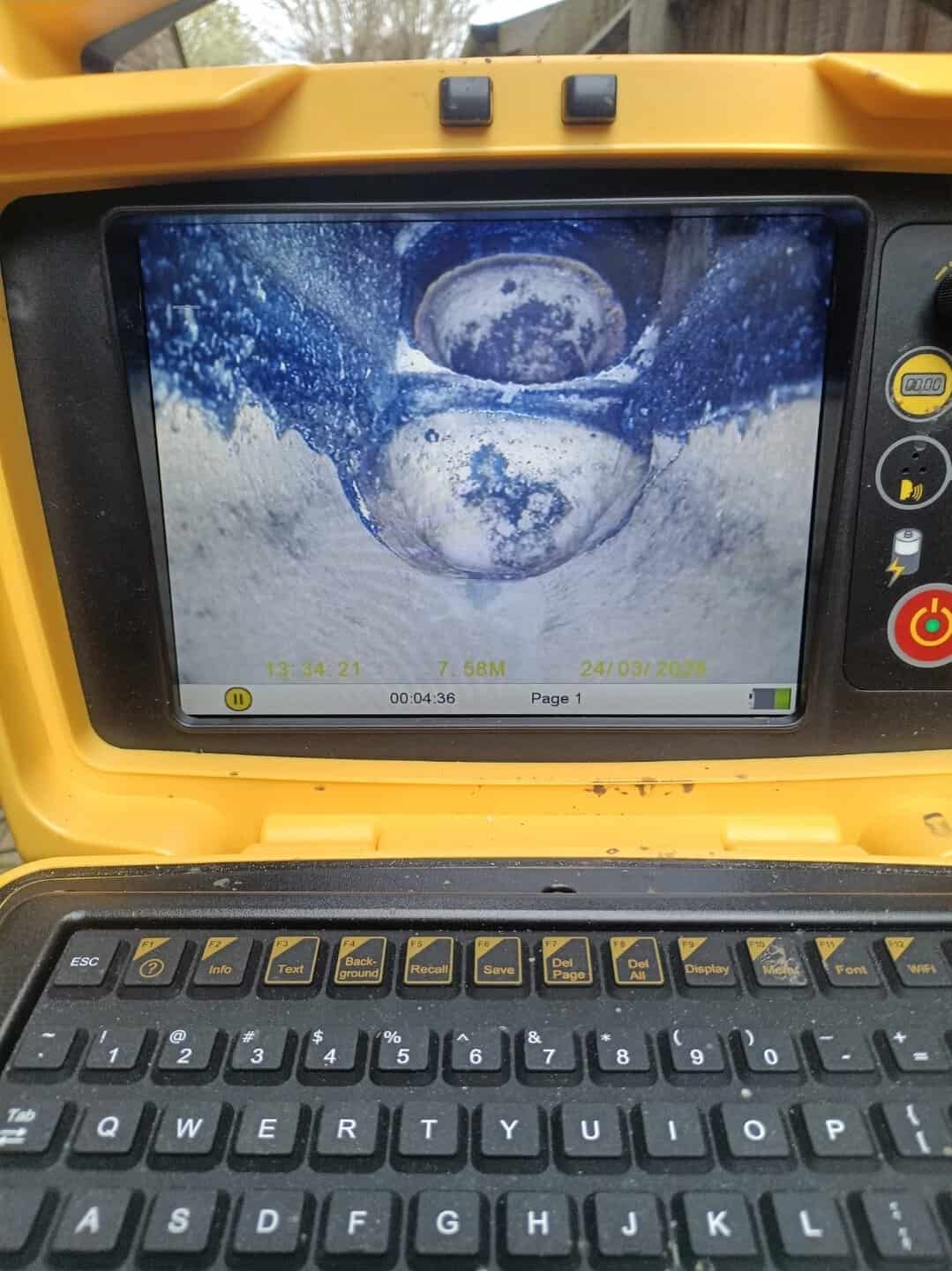

A CCTV survey before installation records the visible internal condition of accessible pipes. If the footage reveals a serious defect, it can be addressed before the new surface is completed. A follow-up survey after the driveway work provides a second record and can identify a change that may require further investigation.
Drain condition is only one part of planning a driveway. Government guidance also explains how permeable surfaces, soakaways and rain gardens can help reduce rainfall runoff into drains. The GOV.UK guidance on permeable surfacing of front gardens is a useful starting point, although property-specific planning advice should come from the relevant authority or professional.
- Persistent Blockages
- Drain Damage
- Property Surveys
CCTV Inspections for Patios and Landscaping
Patios, paths, retaining walls and substantial landscaping schemes can all involve excavation or changes to ground levels. Drain runs may cross the garden without any clear sign at the surface, and inspection chamber covers are sometimes incorporated into paved areas.
Surveying before work begins can help establish the condition of the accessible drainage and flag any section that deserves attention. The information can then be shared with the landscaper so work near the drainage is planned with greater awareness. Once construction is complete, another camera inspection can check for new fractures, displaced joints or debris that may have entered the system during the project.

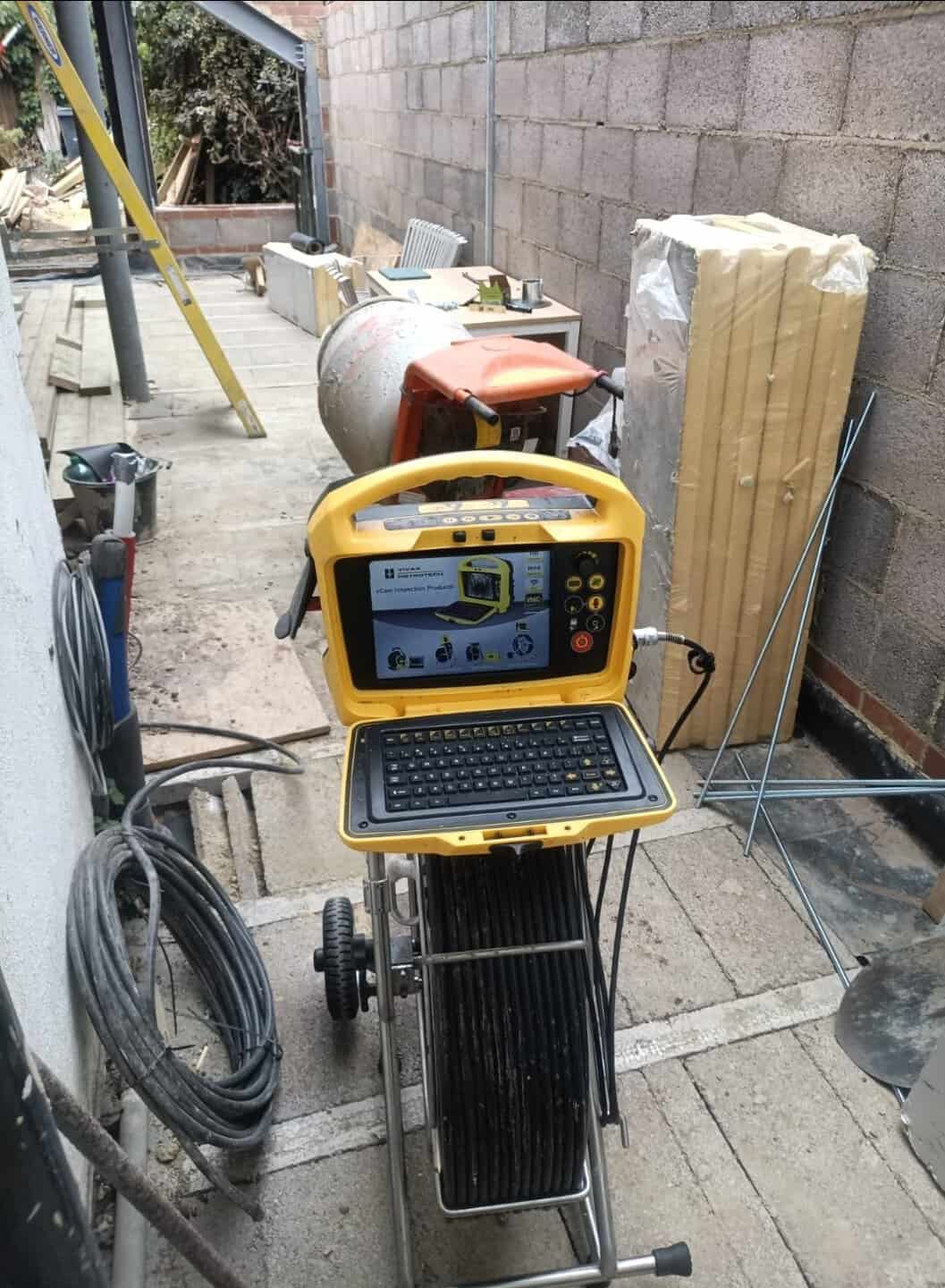

Surveys Before Extensions, Conservatories and Garden Rooms
Extensions and other structures usually require deeper excavation and more substantial foundations than a patio. Work may take place close to an existing drain or directly above its route. Establishing the location and condition of the drainage early gives the designer and contractor better information before foundations are finalised.
A CCTV survey does not replace architectural, structural, Building Regulations or water-company advice. It provides evidence about the accessible pipework itself. If the survey identifies a damaged drain, an unsuitable connection or a section that may need to be moved, the relevant professionals can consider the issue before construction progresses. Where direct repair is necessary, Fresh Drains Ltd also provides drain excavation services.
Fast Response
Prompt service to identify and resolve problems efficiently.
Advanced Technology
Cutting-edge cameras ensure accurate diagnostics without property disruption
Transparent Pricing
Clear, upfront costs with no hidden charges guaranteed.
Experienced Professionals
Over 20 years solving complex drainage issues with expertise.
A Straightforward Way to Protect Your Investment
A driveway, patio or extension can represent a substantial investment. Discovering a hidden drainage problem after the finished surface has been laid may mean reopening an area you have just paid to improve. Two well-timed surveys provide greater visibility and create a useful record on either side of the work.
Fresh Drains Ltd offers professional CCTV inspections for homeowners, landlords, contractors and property managers. We can also provide related drainage services in Wimbledon if a survey reveals cleaning, repair or excavation is required.
Arrange Pre- and Post-Work Drain Surveys
Planning a new driveway, patio, extension or major landscaping project? Arrange the first inspection before work starts and the follow-up once construction is complete. Fresh Drains Ltd will inspect accessible drainage, explain the findings clearly and help you understand whether any further action should be considered. Contact our team or call 07912 312440 to discuss your project and book a CCTV drain survey.
Frequently Asked Questions
These answers cover the most common questions about drainage inspections around construction and landscaping work.
It is not always a legal requirement, but it can be a sensible precaution where drainage runs beneath or close to the proposed driveway. A survey can identify visible existing defects and provide a dated record of the accessible drainage before excavation, compacting and heavy machinery use begin. It may also help establish where pipes appear to run. The findings allow known problems to be considered before they are covered by an expensive new surface.
A CCTV survey inspects accessible drainage internally and can help establish the direction, condition and approximate route of the pipes. Where the precise position is important, additional drain tracing equipment may be recommended. Results depend on access and whether the camera can pass through the system. Old plans are not always complete, so combining current inspection evidence with professional project planning gives contractors a more reliable picture of what lies beneath the working area.
A post-work survey creates a record of the drainage after construction or landscaping has finished. Comparing it with the pre-work footage can help identify new fractures, displaced joints, debris or other visible changes within the surveyed sections. It can also provide reassurance when the drainage remains in satisfactory condition. The second inspection is most useful when it covers the same accessible runs and is completed soon after the relevant groundworks have ended.
Yes. A pre-construction CCTV survey can be particularly useful for an extension because foundation excavation may take place close to existing drainage. The inspection helps record condition and may contribute information about the route of accessible pipes. It does not replace Building Regulations approval, design work or any consent required from the water company. Share the findings with the professionals responsible for the extension so they can consider the drainage in the wider project plan.
The appropriate response depends on the defect. A deposit or obstruction may require cleaning, while a crack might be suitable for relining. A collapsed or badly displaced section may need excavation and replacement. Finding the issue before the project begins allows you to obtain advice and address it while access is easier. Fresh Drains Ltd will explain the evidence and available drainage options, but decisions affecting the wider build should also involve the project contractor and relevant professionals.
In most cases, the inspection is carried out through existing access points such as chambers, so extensive excavation is not required simply to view the inside of the pipework. There may be limited disruption while covers are opened and equipment is moved around the property. If a blockage prevents the camera passing or no suitable access point exists, preliminary clearance or another approach may be necessary. We will explain any access issue before recommending further work.
